Weld Smoothing YG6C Tungsten Carbide Rotary Burr Set

Product Categories
Chengdu Fengke Precision Tool Co., Ltd.
Contact Now

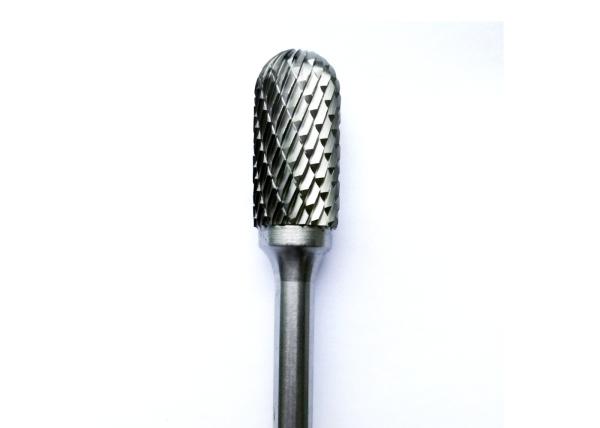

Weld Smoothing YG6C Tungsten Carbide Rotary Burr Set

Supply Ability : 8000000-9000000

Payment Terms : L/C, T/T, D/P, Western Union, Paypal, Money Gram

Price : 5-499 Pieces / US $8.6 | 500-999 Pieces / US $3.28 | 1,000+ Pieces / US $2.9

Model NO. : FK-F

Type of Cut : Standard Double-Cut

Brand : Fengke

Shank : 6mm/6.35mm

Color : Sliver

Package : Plastic Box

Trademark : Fengke

Transport Package : Carton

Specification : SF-5M

Origin : China

HS Code : 820790900

Port : Chengdu, China

Condition : New

Customized : Supply Customized

Material : Tungsten Carbide

Application : Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery, Cutting Processed Cast Iron, Cast Steel

Name : Tungsten Carbide Rotary Files

Grade : Yg8

Contact Now

Carbide Rotary Burrs for Deburring ​

Product Description

Customer Question & Answer

Ask something for more details
Full line of carbide rotary burrs for deburring
I. Product Description
Material 100% Tungsten Carbide Raw Material
Grade YG6/YG6C/YG8/
Density 14.60-14.8g/cm³
Application weld preparation, weld smoothing, deburring, chamfering, deflashing, and scale removal, wood carving, farriers, metalsmithing,
Hardness 91.4-94 HRA
TRS 2400-2800MPA
What is the Tungsten Carbide Burs?
II.What is the Tungsten Carbide Burs?
Weld Smoothing YG6C Tungsten Carbide Rotary Burr Set

Tungsten carbide burs (carbide burrs) are small cutting tools used for cutting, drilling, grinding, and surface
finishing. They are made of tungsten carbide, which is extremely hard and work in high speed to get the precise
cutting edges. Often used in CNC machining, dental drill and material de-burring.

Carbide Rotary Files/Tungsten Carbide Burrs is a new tape cutter with hign effciency,instead of granding wheel bur with handle. It can cut and process various kinds of metal(including hardened steel)and nonmatal(such as marble)with hardness up to HRC less then 70.
III.What is the Application?
Weld Smoothing YG6C Tungsten Carbide Rotary Burr Set
1. Tungsten carbide burs can be used in a wide variety of fields, such as dentistry, diamond cutting, jewelry making, and auto head porting, sculpting, welding, and windshield repairing.

2. Tungsten carbide burs can be used with both electrically-powered and pneumatically-powered hand-held toolsto cut materials like aluminium, brass, titanium alloys, cast iron, copper, zinc alloys, bronze, nickel, various plastics, alloy steels, etc. They also can be used on a wide range of pneumatic, electric and flexible drive tools.

III.What is the Advantage of Carbide burs? What is the Features of Carbide burs?
1. Long service life
2. High cutting capacity
3. Effective freehand stock removal
4. Weld preparation and removal
5. High safety during working
6. Easy operation

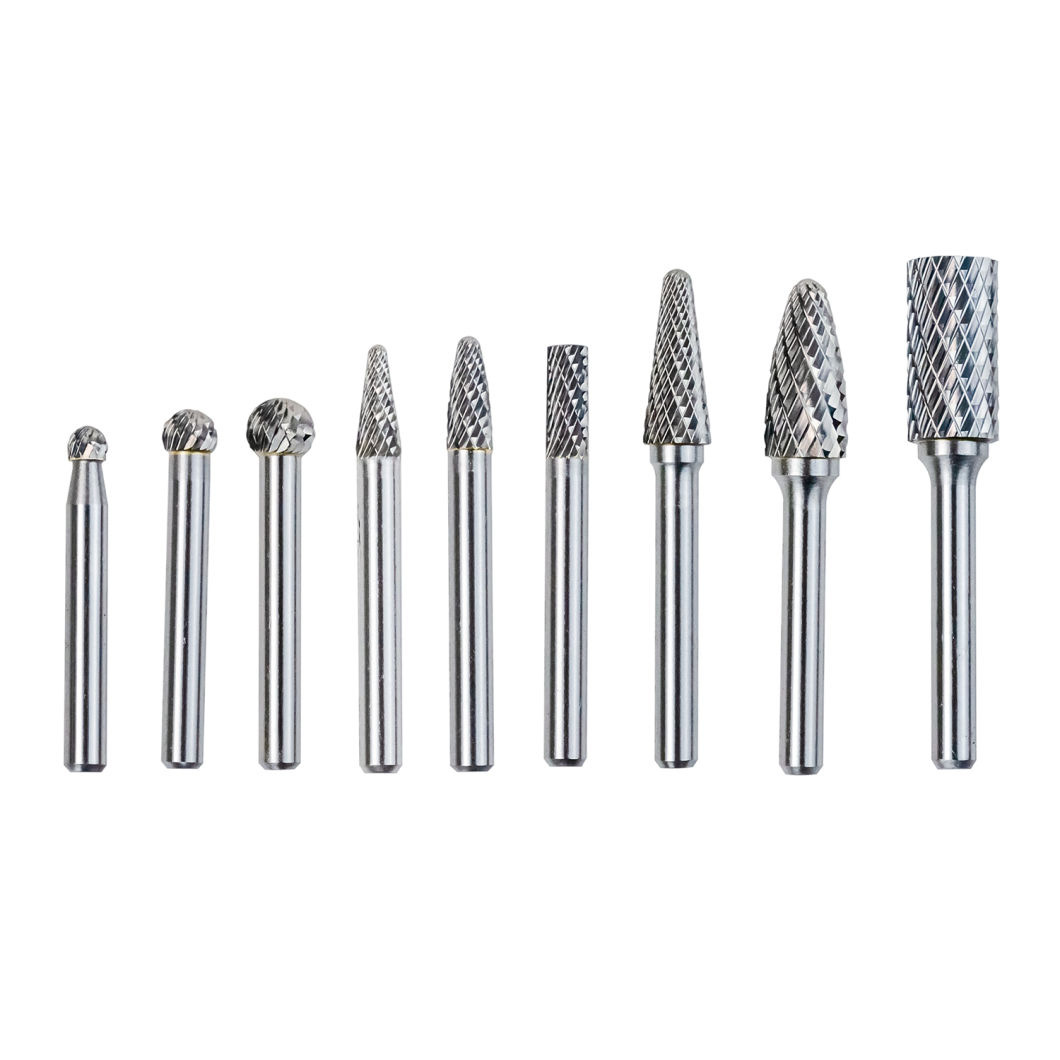

IV.What does your carbide burs Look Like?
Weld Smoothing YG6C Tungsten Carbide Rotary Burr Set
V.What is the Feature ?
Product name Highly efficient air tools double flutes tungsten carbide rotary file burr flat bottom silver welding rotary file
Brand Fengke double flutes tungsten carbide rotary file burr
Material Tungsten Carbide
shank HRA 89-92.5hardness
shank 3mm/6mm/8mm/10mm...diamter
speed 15000-45000Turn/min
Packing 1set packing
Certificate ISO9001:2008
Model Customized carbide burr
MOQ 5pcs

VI.What should we pay attention to when we use it?
1. Speed /RPM
The speed at which you use your carbide burrs in your rotary tool will depend on the material you're using it on and the contour being produced but it's safe to say you do not need to exceed speeds of 35,000 RPM.

2. Apply only a little pressure
As with all drill bits and burrs, let the burr do the work and apply only a little pressure otherwise the cutting edges of the flutes will chip away or become smooth too quickly, reducing the life of your burr.

3. Keep The Carbide Burr On The Move
When using your carbide burr try not to keep it still for too long as this will prevent the burr from digging and jabbing into your material causing unsightly marks and roughness.
What is the Specification of your Carbide Burrs?
VII.What is the Specification of your Carbide Burrs?
Model d1 L d2(holder)
SA-5 1/2 1 1/4
SA-3 3/8 3/4 1/4
SC-3 3/8 3/4 1/4
SC-1 1/4 5/8 1/4
SD-3 3/8 5/16 1/4
SD-1 1/4 7/32 1/4
SF-5 1/2 1 1/4
SF-3 3/8 3/4 1/4
SA-1 1/4 5/8 1/4
SD-2 3/8 1/4 1/4
SE-3 3/8 5/8 1/4
SL-3 3/8 1 1/4
SG-1 1/4 5/8 1/4
SH-1 1/4 5/8 1/4

Weld Smoothing YG6C Tungsten Carbide Rotary Burr Set

** Carbide burrs manufactured to your drawings to meet your demands of particular stock removal.
VIII.How to produce the Carbide burs?
Weld Smoothing YG6C Tungsten Carbide Rotary Burr Set



We can make chemical and geometry analysis for your carbide burs material and make grinding test in our professional laboratory center.About us IX.About us
Weld Smoothing YG6C Tungsten Carbide Rotary Burr Set
IIIHow to Pack&Ship the products?
We,Chengdu Fengke Carbide Tools Co., Ltd, is one of the leading carbide manufacturers of China .
Established in 2005, we specialize in Tungsten Carbide products over 14years. Our products consist of all kinds and grades of carbide, mainly for cutting blades,rotary carbide blank,carbide circular knife,carbide scraper blades and handles so on.
Our total production area is 15,000 m2 and production Capacity is over 8,000,000-10,000,000pcs/ Year.
We can also customize all kinds of tungsten carbide products according to your drawing or samples.
Finally we always have stock available.
Address:No.21 Hengsheng Road, Shaqu Town, Dayi County, Chengdu, Sichuan Province, China

Workshop
Weld Smoothing YG6C Tungsten Carbide Rotary Burr Set
XI.How to Pack&Ship the products?
Weld Smoothing YG6C Tungsten Carbide Rotary Burr Set

PACKAGE:
Standard export carton packing


DELIVERY TIME:
2-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity
